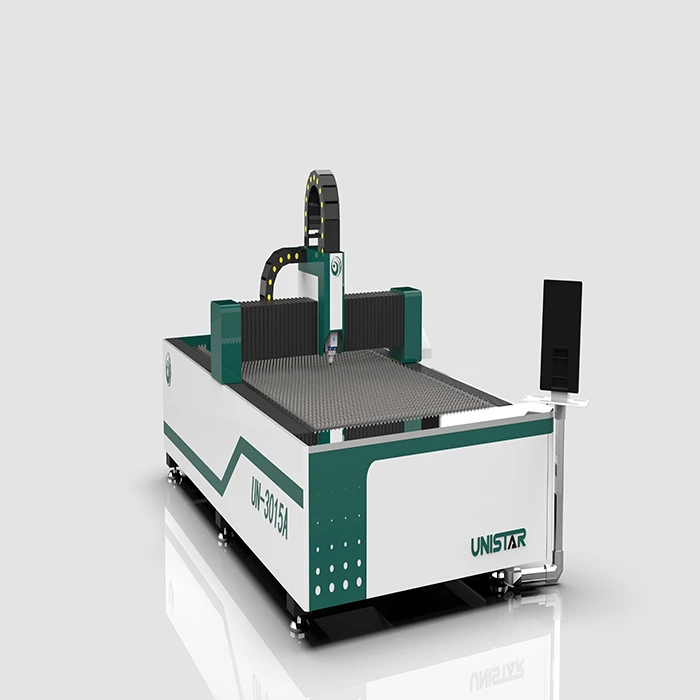

Tshiab tsim USJ1530 Sheet hlau Laser txiav machine
Cov ntawv hlau laser cutting tshuab siv ib lub laser fiber ntau los ua ib qho chaw siab-zog-lens nqaj thiab ua kom pom tseeb ntawm qhov chaw ua hauj lwm, kom cheeb tsam ntawm lub workpiece uas yog illuminated los ntawm qhov chaw ntawm lub ntsej muag ultra-zoo yog instantly yaj thiab vaporized. Tsis siv neeg txiav yog tau los ntawm kev txav ntawm qhov chaw tsis muaj teeb meem los ntawm kev tswj txhua yam los ntawm kev tswj txhua yam. Nws yog khoom siv high-tech uas sib txuas cov tswv yim zoo tshaj plaws ntawm cov tshuab laser, kev tswj kev ua zauv thiab kev kho tshuab zoo dua.
Nta
(1) Lub laser fiber ntau muaj kev hloov siab electro-optical efficiency thiab conversion efficiency ntawm ntau tshaj 30%. Qhov qes-tsawg zog laser tsis tas yuav tsum tau nruab nrog ib cov chiller, thiab txais cov cua txias, uas tuaj yeem txuag tau hwj huam ntau thaum lub lag luam, tseg kev khiav hauj lwm tus nqi, thiab ua tiav siab tshaj. kev ua haujlwm zoo;
(2) Lub laser tsuas xav tau hluav taws xob thaum nws khiav, thiab tsis tas yuav tsim kom muaj roj ntxiv ntawm laser, uas muaj cov nqi qis tshaj thiab kev txuag nqi;
(3) Cov laser fiber ntau yuav siv cov khoom tsim kho thiab cov khoom siv redundant. Yog tsis muaj qhov zoo tshaj plaws lens nyob rau hauv cov kab noj hniav, tsis muaj lub sijhawm pib, thiab nws muaj qhov tsis zoo, tsis muaj kev tiv thaiv thiab kev ruaj siab siab, uas txo tus nqi ntawm cov khoom siv thiab kev tu lub sijhawm. Cov tsoos las tsoos yog cov khoom ua ke;
(4) Qhov luaj li cas ntawm lub laser fiber yog 1.064 micron, uas yog 1/10 ntawm CO2 wavelength. Qhov nqaj zij nyeg zoo yog qhov zoo thiab lub hwj chim ceev yog siab, uas yog heev rau txoj kev haum ntawm cov khoom hlau. Nws muaj cov khoom zoo heev thiab vuam tuition, yog li ua haujlwm tshaj tawm. Tus nqi qes tshaj;
(5) Lub tshuab tsis zoo tagnrho cov tshuab fiber ntau tsis yuav tsum muaj teeb pom kev nyuaj xws li daim iav, txoj kev kho qhov muag yooj yim, tus qauv ruaj khov, thiab lwm txoj kev kho qhov muag tsis pub muaj txij nkawm;
(6) Lub taub hau txiav txim siab muaj cov ntsiab muag tiv thaiv, kom lub qis khoom kim heev xws li tsom iav tsom me me heev;
(7) Lub teeb yog raug xa tawm los ntawm cov khoom siv fiber ntau, ua tus tsim ntawm cov neeg kho tshuab qhov yooj yim heev, thiab nws yog qhov yooj yim heev rau kev sib txuas nrog cov neeg hlau los yog siv ntau lub qhov sib luag;
(8) Tom qab lub laser ntxiv rau lub shutter, nws yuav ua tau tej lub tshuab, cais los ntawm fiber, cais ua ntau yam thiab ua hauj lwm tib lub sij hawm, yooj yim kom nthuav zog, yooj yim rau upgrade thiab yooj yim;
(9) Lub laser fiber ntau me me, lub teeb nyob hauv qhov hnyav, mov hauv qhov chaw ua hauj lwm, thiab me me ntawm kab khiav;
Technical parameter
Qauv | Fiber-USJ2030 | Fiber-USJ1530 | Fiber-USJ1325 | ||||
Ua Hauj Lwm | 2000 * 3000mm | 1500 * 3000mm | 1300 * 2500 hli | ||||
Laser qhov chaw tshaj tawm | Fiber ntau lub laser generator | ||||||
Laser zog | Domestic nto npe hom RAYCUS 500W | ||||||
Teb chaws nrog | Qhov nto yog 200/250 / 300mm /, ntev yuav yog 2m / 3m thiab lwm yam | ||||||
Laser taub hau | Swiss Raytools laser taub hau / American lasermech / Lub teb chaws Yelemees precitec laser taub hau | ||||||
Laser Wavelength | 1080 nm | ||||||
Beam Zoo | <> | ||||||
Kev Tso Cai | ≤ ± 0.03 hli / m | ||||||
Rov Muab Txoj Cai Ncaj Ncees | ≤ ± 0.02 hli / m | ||||||
Max Txiav ceev | 0-40m / min (nyob ntawm cov khoom thiab cov tuab) | ||||||
Max mus ceev ceev | 120m / min | ||||||
Lub Hwjchim Khoom Muaj Peev Xwm | 3-theem 380V / 50Hz | ||||||
X-axis Stroke | 2000 hli | 1500 hli | 1300 hli | ||||
Y-axis Stroke | 3000 hli | 3000 hli | 2500 hli | ||||
Z-axis Stroke | 200 hli | ||||||
Ua Hauj Lwm Cov Lus Qhia | Hniav lub cav | ||||||
Tswj System | Tuam Tshoj Kev CYPCUT (cypone) tswj kev ua haujlwm | ||||||
Qhov System Qhov Chaw | Kev ntsuas liab liab | ||||||
Dej chiller | Dej chiller CW6200 | ||||||
Kev kis | X, Y, Z axis txais yuav pob kev sib tw kis | ||||||
Tsav thiab tsav tsheb | Nyiv PANASONNIC servo tsav thiab tsav tsheb nrog kev ua tau zoo | ||||||
Reducer | Nyiv Shimpo reducer, tshuab ua hauj lwm ntau ruaj khov, qis dua nrov | ||||||
Windpipe | Xaws los ntawm shenzhen | ||||||
Handheld Terminal | Bochu (Cypone tswj kov) | ||||||
Txhawb Cov Qauv Txuj Ci | NC PLT, DXF, BMP, AI, DST, DWG, thiab lwm yam | ||||||
Plua plav Blower | Lub tshuab nrog plua plav blower system | ||||||
Ua haujlwm kub | Sab hauv tsev kub yog ok | ||||||
Xyoo ntawm warranty | 1.5 xyoo warranty, tsis muaj kev puas tsuaj tib neeg | ||||||
Qhov zoo
(1) High precision, ceev ceev, nqaim slit, qhov tsawg tshaj kub thawm thaj tsam, tus txiav ntuag thiab tsis muaj burr.
(2) Lub laser txiav lub taub hau tsis tuaj yeem nrog kev sib txuas ntawm cov khoom siv thiab tsis kos cov haujlwm workpiece.
(3) Lub slit yog qhov nqaim, qhov chaw tshav kub yog qhov tsawg tshaj plaws, lub zos deformation ntawm lub chaw ua hauj lwm tsawg heev, thiab tsis muaj kev hloov kho tshuab.
(4) Cov zauv yooj yim zoo, thiab txhua tus qauv tuaj yeem ua tiav, thiab cov yeeb nkab thiab lwm cov profiles tuaj yeem txiav tau.
(5) Cov ntuag uas tsis siv tau yuav ua tau rau cov ntaub ntawv ntawm tej yam xws li steel phaj, xim hlau tsis muaj hlau, txhuas txhuas phaj, thiab tawv hlau.
Kev lag luam daim ntawv thov
Cov khoom siv hlau nplaum, cov khoom siv hluav taws xob, hluav taws xob, txua hluav taws xob, txua hluav taws xob, txua hluav taws xob, khoom siv ua noj, khoom siv ua khoom siv hluav taws xob, teeb pom kev zoo, nqi, yooj yim rau kev khiav lag luam, kev nyab xeeb thiab kev nyob nyab xeeb ntawm tus kheej.
Ua cov khoom
Stainless hlau, carbon steel, coiled steel, hlau alloy, silicon hlau, caij nplooj ntoos hlav steel, aluminium, aluminium alloy, galvanized ntawv, galvanized ntawv, pickled ntawv, tooj liab, nyiaj, kub, titanium thiab lwm cov hlau ntawv thiab xa txiav.
Qhia kom meej
Txiav cov qauv rau koj siv
|
Warranty thiab kev kawm
1> Lub tshuab warranty peb muab 1.5years, feem ntau yog lwm lub tuam txhab yog 1 xyoos
2> Hais txog tshuab spare qhov chaw, peb yuav xa ob ntim khoom siv nrog tshuab ua ke rau koj siv spare
3> a. Nyob rau lub sijhawm lav no, yog nws tawg lossis qee yam puas tsuaj Qhov tshwj xeeb thiab cov khoom ua rau majeure, tus neeg muag khoom yuav tsum yog tus kho lub luag haujlwm dawb
Cov khoom yuav tsum tau muab hloov yuav muab tau los ntawm tus neeg muag khoom los pab dawb hnav dawb)
b> tom qab lub sij hawm lees paub lub sijhawm, tus neeg yuav khoom tsuas yog yuav tsum tau them tus nqi kho mob xwb
c> Unistar laser yuav rov tuaj xyuas cov neeg tuaj ntawm lub sijhawm ib xyoos
Yog hais tias cov neeg siv tshuab overtime lub sij hawm lav, tau hais kom cia cov engineers
Rau kev pabcuam thij ob, peb tuaj yeem ua vixaj, thiab kev pabcuam zaum ob, thov cov nqi yuav tsum tau txais los ntawm tus yuav khoom, xws li cov nqi vixaj, tuaj thiab thaij daim pib, cov nqi kawm.
