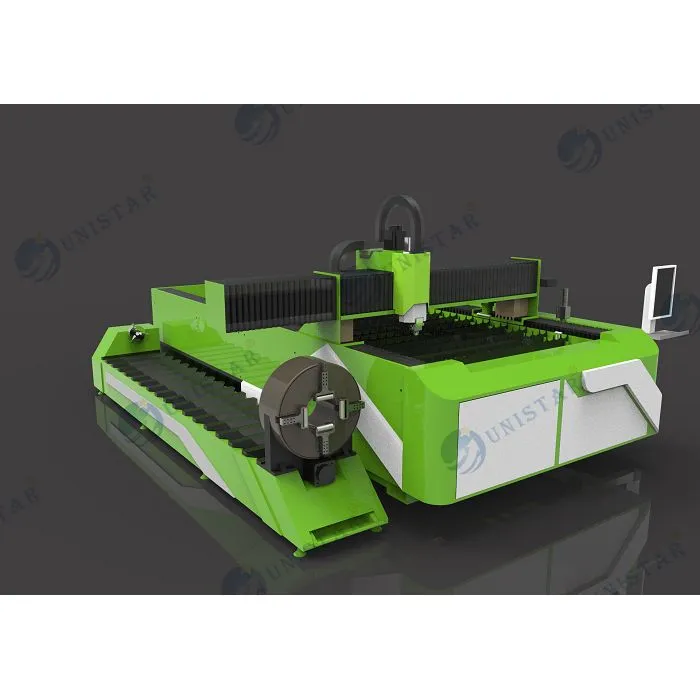

Cov qauv tsim ntawm cov Fiber laser cutter nrog cov teb rau hlau hlau, steel phaj txiav
Qhov Fiber Laser Cutter no yog lub cuab yeej tshwj xeeb tshuab uas siv cov tshuab laser los ua ntau yam duab nrawm ntawm cov yeeb nkab thiab cov phaj. Nws yog ib qho khoom siv high-tech integrating tshuab kev tswj cov zauv, laser txiav thiab cov cuab yeej ua kev ceev. Nrog kev, kev kub ceev, kev siab tshaj, kev ua haujlwm siab, kev ua haujlwm siab thiab lwm yam kev ua tau zoo, nws yog thawj qhov kev xaiv rau cov yeeb nkab uas tsis sib chwv hlau.
Fiber Laser Cutter tshuab Zoo:
(1) Tsim kev tsim, qis nqis peev, tso zis ntau dua. Nws tuaj yeem txiav cov hlau nplooj thiab txiav hlau kav hauv ib lub tshuab, tshem tawm qhov yuav tsum tau yuav ob lub nqi ntawm cov nqi, txuag ntau dua 50% ntawm qhov chaw, nqa cov khoom zoo dua thiab tsim dua cov txiaj ntsim siab dua.
(2) Lub fais chuck clamps tus tsim thiab txais kev kho qhov chaw. Lub lag luam yog qhov yooj yim, cov kab ua haujlwm yog ntawm 20-200mm, uas tuaj yeem ntsib feem ntau ntawm cov yeeb nkab uas yuav tsum tau ua. Ua kom zoo dua qhov kev txiav txim siab ntawm qhov khoom thiab kev ua haujlwm kom zoo ntxiv.
(3) Lub txaj hlau txav thiaj li ua kom poob lub tshuab thaum siv thiab ua rau lub cav ntawm lub tshuab ntev ntev.
Thov khoom
Stainless steel phaj, carbon steel, tooj liab, aluminium, hlau raj, hlau xwm tube galvanized ntawv, electrolytic phaj, silicon hlau. lwm yam
Fiber Laser Cutter tshuab Specification
HOM | USF-3015 |
Laser hom | Fiber ntau lub laser generator |
Lub txheej txheem | 3000 * 1500 hli |
laser wavelength | 1060 nm |
tso tawm cov hluav taws xob tso tawm | 500W / 800W / 1000W |
Beam zoo | <> |
X axis mob stroke | 3050 hli |
Y axis mob stroke | 1525 hli |
Z axis mob stroke | 120 hli |
Qhov system txias | 1p |
workbench axial positioning raug | ≤ ± 0.03 hli / m |
workbench rov tso qhov tseeb | ≤ ± 0.03 hli / m |
Tsawg tshaj plaws acceleration | 0.5G |
workbench siab tshaj plaws | 800KG |
Sij hawm | 3 |
Fais fab tswv yim | 380V * 50HZ * 100A |
Tag nrho kev tiv thaiv qib qib | IP54 |
Tshaj tawm kev siab tshaj | 60m / min |
Qhov tsawg kawg nkaus kab qhov dav | 0.15 hli |
Qhov siab tshaj qhov txiav thickness | 10 hli |
Tshuab nyhav | 2000-8000KG |
Teb | Taub Hauv 100 hli, ntev 2.5m |
Txiav cov qauv
