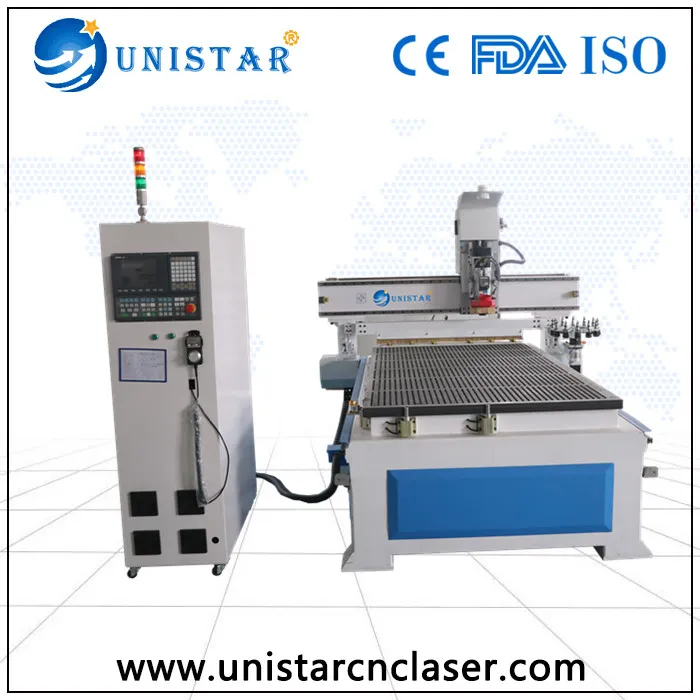

1325 3D Servo System ATC cnc router nrog disc lub cuab tam hloov
Kev lag luam tsim nyog
Lub chaw machining yog tsim los rau cov neeg siv theem siab kawg nrog cov txheej txheem siab, kev cai siab thiab kev kawm siab ntawm automation. Nws yog haum rau high-volume, tag nrho cov huab cua ua.
Kev Lag Luam Txiag Khoom, Cov Khoom Siv Luam Yeeb Tshaj, Khoom Siv Hluav Taws Xob, Khoom Siv Hluav Taws Xob, Khoom Siv Suab Seev Cev, 3D Tshaj Plaws rau Kev Txiav Ntse Seev suab paj nruag, Nruas txiav.
CNC Router nrog Disc Tool Changer Qhia:
1) Hom kev hloov ntawm cov cuab yeej yog qhov pheej yig thiab muaj qhov kev hloov twj paj nruag uas tsis muaj cuab kav hloov kho uas muaj peev xwm kho tau qhov chaw ntawm cov cuab yeej lub cuab yeej thiab tau txais cov cuab yeej qhov system.
2) 3KW Ob lub hnab sau qhov system, ua haujlwm zoo dua qub
3) Kuaj kev tiv thaiv ntawm qhov chaw ua haujlwm kom tsis txhob muaj kev puas tsuaj rau lub rooj vim kev ua haujlwm lossis kev ua yuam kev software. Kev txawj ntse ua kev tiv thaiv kab lig kev cai tiv thaiv txhua yam kev cuam tshuam los ntawm cov qauv tsim tawm ntau tshaj qhov kev dav.
4) Advanced NK260 tswj kev tswj haujlwm kom automate multi-level 3D processing. Ua kom yooj yim du 3D machining, engraving los yog txiav, off-line lag luam.
5) Tag nrho cov qauv hlau yog tus cwj pwm rau kev laus kev kho mob, uas yog tsis deformed. Gantry hom mobile, ntim worktable nto, dawb los ua cov ntaub ntawv ntawm lub rooj ua haujlwm.
6) Txuas Tebchaws Taiwan HIWIN linear square rail guide, X, Y Helical rack-pinion, Z Taiwan pob ntsia hlau, muaj kabmob loj loj, txav zog, kev siab tshaj thiab kev pab lub neej ntev.
7) Zoo sib xws software, tsim tau CAD / CAM tsim software xws li type3 / Artcam / Castmate / Wentai.
8) Haum rau ntau ntau yam khoom.
CNC Router nrog Disc Tool Changer Parameter
Lub npe | Specification |
Tshuab thaj chaw (X) | 1300 hli |
Tshuab thaj chaw (Y) | 2500 hli |
Tshuab Cheeb Tsam (Z) | 200 hli |
Ua haujlwm cheeb tsam | 1300 * 2500 * 200mm |
Spindle | 9KW cua txias HQD nws pib hloov chaw ntxeev |
Tshuab lub cev | Heavy duty qauv weld steel 12 hli thickness |
Tswj lub cev | NK260 tswj qhov system nrog kev ua haujlwm zoo |
Cov hom lus | Muaj zog nqus cov lus adsorption |
Tsav thiab tsav tsheb | Taiwan raws kev tsav tsheb thiab tsav tsheb |
Inverter | Surfar inverter (Zoo tshaj hauv Suav Teb) |
Rail guide | Taiwan phau ntawv qhia HIWIN |
Tool sensor | Nws pib twj sensor |
Cov plua tshauv sau ua ke | 3KW Ob lub hnab sau qhov system |
Kev kis | X, Y Helical khib -pinion, Z Taiwan pob ntsia hlau |
Cov roj system | Pib roj kev txhaj tshuaj |
Vauum twj | 5.5KW lub tshuab nqus tsev vacuum for lub rooj nqus tsev |
Cov plua tshauv sau ua ke | 3KW Ob lub hnab sau qhov system |
Tsis siv neeg qhov chaw qhov system | nrog |
Tsis siv neeg pub khoom | nrog |
Tool sensor | Nws pib twj sensor |
Cov ntawv magazine | Carousel style ATC 8 txoj hauj lwm |
Tug kav | 8 lub cuab tam cov cuab yeej |
Mus ncig teb chaws ceev | 60m-80m / min |
Ua ceev | 25m / min |
Spindle RPM (max) | 0-24000 RPM |
Txoj hauj lwm tseeb | ± 0.02 hli |
Ntes daim duab
Qauv Duab
